[lldb-dev] Watching the current frame locals
Eran Ifrah
eran.ifrah at gmail.com
Tue Apr 8 13:32:13 PDT 2014
OK, I take it back... I did not dig enough in the tree /facepalm
You are right, digging through the tree there are cases where "Summary" and
"Value" do appear together

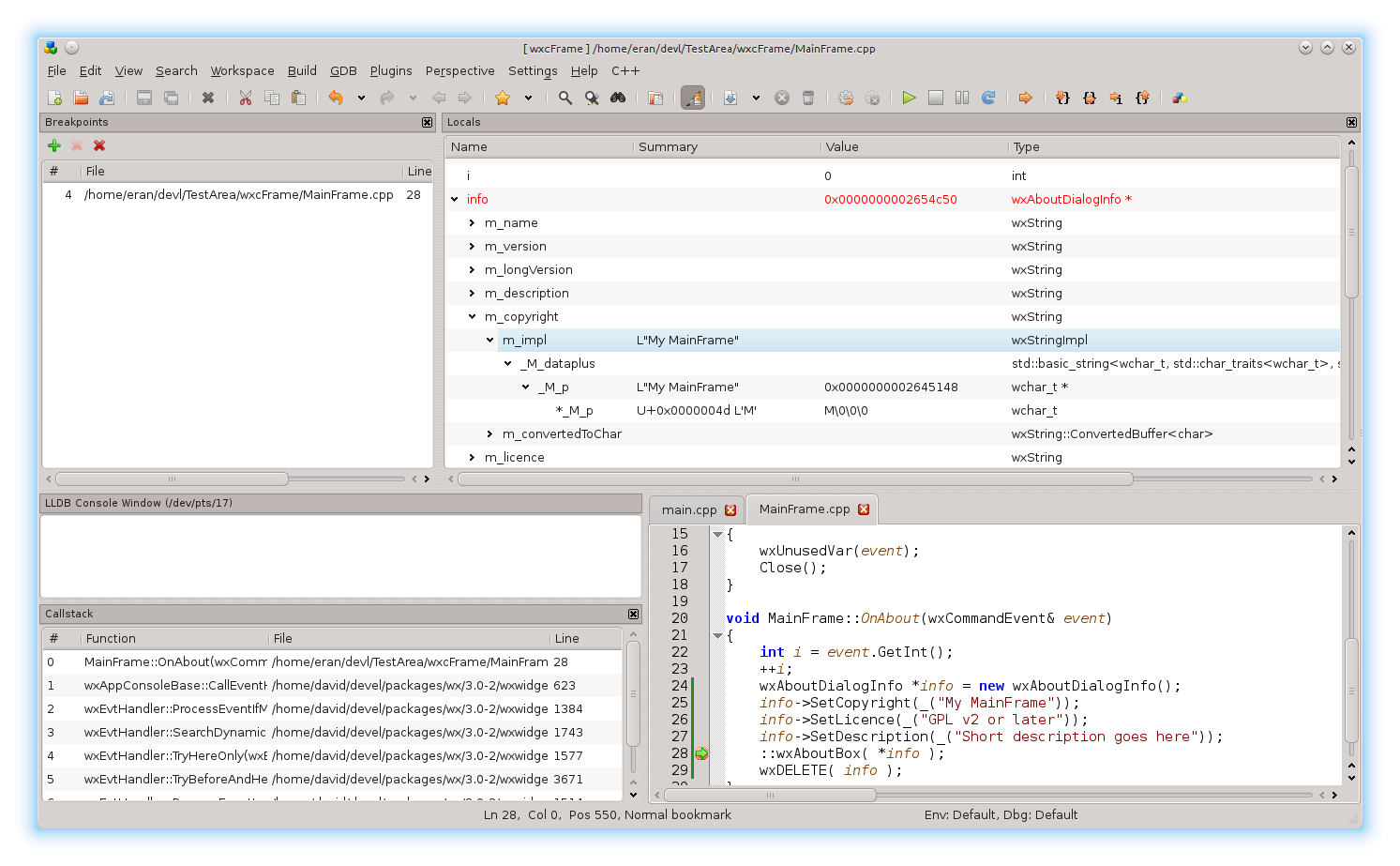

Below is a link to an updated screenshot.
http://codelite.org/images/empty-summary1.png
For now, I will keep both columns as you suggested
Thanks for the assistance
On Tue, Apr 8, 2014 at 11:24 PM, Eran Ifrah <eran.ifrah at gmail.com> wrote:
>
>
>
> On Tue, Apr 8, 2014 at 10:55 PM, Enrico Granata <egranata at apple.com>wrote:
>
>> On Apr 8, 2014, at 12:35 PM, Eran Ifrah <eran.ifrah at gmail.com> wrote:
>>
>> Thanks for the tip. It works fine for 'string' types
>> But for simple types (e.g. 'int') GetSummary() returns an empty string..
>> :/
>>
>> So I ended up writing this little method:
>> http://pastebin.com/pj0znv9j
>>
>>
>> IIUC your logic, you’re saying - for pointers to “char-like things”, get
>> the summary, for anything else just get the value
>> That doesn’t seem right. You are going to hide the summary for classes
>> and structs doing this, and not get anything to display since these don’t
>> have a value
>>
>> Why are you trying to coalesce value and summary instead of keeping them
>> as two separate notions and then making print-time decisions?
>> In the LLDB source, there is a ValueObjectPrinter.cpp which implements
>> the printing that you see with the frame variable command, for instance
>> That might be a useful starting point for you to look at if you’re aiming
>> to provide “smart” printouts of data
>>
>> The reason I did this, was that GetSummary() returns empty string in all
> cases except for strings, so this was an attempt to merge both columns into
> a single column ("Value")
>
> For testing purposes, I updated my UI to include 2 separate columns
> "Summary" and "Value"
> As you can see in the attached screenshot, the "Summary" is always empty,
> except for 'string' types
> ( I don't see any summary for classes and structs )
>
> http://codelite.org/images/empty-summary.png
>
>
>> Which seems to work fine for me (ofcourse, I will know more when I upload
>> the pre-release to my testers)
>>
>> Thanks
>>
>>
>>
>> On Tue, Apr 8, 2014 at 9:04 PM, <jingham at apple.com> wrote:
>>
>>> That is what the Summary is for. The Summary, if it exists, is the
>>> preferred "interpreted" presentation of the data held by the SBValue. So
>>> for a char *, the Value is the pointer value, but the Summary is the
>>> c-string contents.
>>>
>>> Jim
>>>
>>> On Apr 8, 2014, at 10:57 AM, Eran Ifrah <eran.ifrah at gmail.com> wrote:
>>>
>>> > Hello Enrico / All,
>>> >
>>> > I debugged it and it seems like a bug in my code.
>>> > To get the frame locals (function args and locals) I was using this
>>> call:
>>> >
>>> > frame.GetBlock().GetVariables()
>>> >
>>> > While I should have simply call to frame.GetVariables()
>>> > Which fixes the problem.
>>> >
>>> > However, I am facing another issue:
>>> > It seems like the function "const char* SBValue::GetValue()" returns
>>> the pointer address as string instead of the actual content
>>> >
>>> > Any quick way to get the data as an actual c-str?
>>> >
>>> > For example:
>>> >
>>> > int main(int argc, char** argv) {
>>> > return 0;
>>> > }
>>> >
>>> > My lldb UI for the "locals" view looks like this (best viewed in
>>> monospace font ;)) :
>>> >
>>> >
>>> --------------------------------------------------------------------------------
>>> > name | type | value
>>> >
>>> --------------------------------------------------------------------------------
>>> > argc | int | 1
>>> > argv | const char** | 0xfffffab123 (some random address)
>>> > | | |
>>> > +-*argv | const char* | 0xfffffab124 (some other address)
>>> > | | |
>>> > +- **argv| char | '/'
>>> >
>>> > In the code, I can identify that *argv is of type
>>> lldb::eBasicType*Char, however, I can't find a way to extract the string
>>> itself (it should be "/home/eran/test/TestLLDB")
>>> >
>>> > Any hints?
>>> >
>>> > Thanks!
>>> >
>>> >
>>> >
>>> >
>>> > On Mon, Apr 7, 2014 at 5:31 AM, Eran Ifrah <eran.ifrah at gmail.com>
>>> wrote:
>>> > Thanks, will debug this and see where it fails
>>> >
>>> > Eran
>>> >
>>> >
>>> > On Mon, Apr 7, 2014 at 1:43 AM, Enrico Granata <egranata at apple.com>
>>> wrote:
>>> > Yeah the const char* definitely should have a value.
>>> > I am guessing the variable is in scope all right. Does it have a
>>> summary if you ask for that?
>>> > Does the same API call work if you stop directly within LLDB and use
>>> the Python API?
>>> > More context (e.g. a repro case) would also help - or maybe if you can
>>> step through the LLDB code and see where we fail. If these are just frame
>>> locals I expect the relevant code to be in ValueObject.cpp GetValueAsCString
>>> >
>>> > Sent from the iPhone of
>>> > Enrico Granata <egranata@🍎.com>
>>> >
>>> > On Apr 6, 2014, at 12:26 PM, Eran Ifrah <eran.ifrah at gmail.com> wrote:
>>> >
>>> >> One of the local variables was 'const char*' so I would expect it to
>>> have a value and others were of type of 'wxString'
>>> >> In the UI I expanded all the way to the _M_data which is of type
>>> 'wchar_t*' - and still nothing
>>> >>
>>> >> Eran
>>> >>
>>> >>
>>> >>
>>> >> On Sun, Apr 6, 2014 at 9:13 PM, Enrico Granata <egranata at apple.com>
>>> wrote:
>>> >> What is the data type of your variables?
>>> >>
>>> >> If they are aggregate types (structs, classes, ...) they won't have a
>>> value.
>>> >>
>>> >> Only basic types (int, float, char, ..., you get the idea - and
>>> pointers) have a value.
>>> >>
>>> >> For other types, they might have a summary, or they might have
>>> children, but definitely no value.
>>> >>
>>> >> Sent from the iPhone of
>>> >> Enrico Granata <egranata@🍎.com>
>>> >>
>>> >> On Apr 6, 2014, at 7:02 AM, Eran Ifrah <eran.ifrah at gmail.com> wrote:
>>> >>
>>> >>> Hello all,
>>> >>>
>>> >>> I am at a phase where I want to display the current frame local
>>> variables whenever the debugger "stops"
>>> >>> I was able to get a list of the selected frame's variables in the
>>> following manner:
>>> >>>
>>> >>> lldb::SBFrame frame =
>>> m_target.GetProcess().GetSelectedThread().GetSelectedFrame();
>>> >>> ...
>>> >>> lldb::SBValueList args = frame.GetBlock().GetVariables(m_target,
>>> true, true, false);
>>> >>> for(size_t i=0; i<args.GetSize(); ++i) {
>>> >>> lldb::SBValue value = args.GetValueAtIndex(i);
>>> >>> if ( value.IsValid() ) {
>>> >>> LLDBLocalVariable::Ptr_t var( new
>>> LLDBLocalVariable(value) );
>>> >>> locals.push_back( var );
>>> >>> }
>>> >>> }
>>> >>>
>>> >>> Now, LLDBLocalVariable is a thin wrapper class for UI purposes.
>>> >>> What it does is basically copies values from lldb::SBValue:
>>> >>>
>>> >>> LLDBLocalVariable::LLDBLocalVariable(lldb::SBValue value) {
>>> >>> SetName( value.GetName() );
>>> >>> SetType( value.GetTypeName() );
>>> >>> SetValue( value.GetValue() ); // always returns null
>>> >>> ... // code that handles children of value
>>> >>> }
>>> >>>
>>> >>> value.GetName() and value.GetTypeName() are working as expected
>>> (i.e. I get the correct type name and its name)
>>> >>> However, I can't get the value as "string". I was naive enough to
>>> think that const char* SBValue::GetValue() will do the trick... but this
>>> always returns NULL.
>>> >>>
>>> >>> Any suggestions on what am I doing wrong? an example on how to
>>> extract the variable's value in string format will be really appreciated
>>> >>>
>>> >>> Thanks,
>>> >>>
>>> >>> P.S.
>>> >>> This is Linux 13.10 / 64 bit
>>> >>> Self compiled lldb
>>> >>>
>>> >>> --
>>> >>> Eran Ifrah
>>> >>> Author of codelite, a cross platform open source C/C++ IDE:
>>> http://www.codelite.org
>>> >>> wxCrafter, a wxWidgets RAD: http://wxcrafter.codelite.org
>>> >>> _______________________________________________
>>> >>> lldb-dev mailing list
>>> >>> lldb-dev at cs.uiuc.edu
>>> >>> http://lists.cs.uiuc.edu/mailman/listinfo/lldb-dev
>>> >>
>>> >>
>>> >>
>>> >> --
>>> >> Eran Ifrah
>>> >> Author of codelite, a cross platform open source C/C++ IDE:
>>> http://www.codelite.org
>>> >> wxCrafter, a wxWidgets RAD: http://wxcrafter.codelite.org
>>> >
>>> >
>>> >
>>> > --
>>> > Eran Ifrah
>>> > Author of codelite, a cross platform open source C/C++ IDE:
>>> http://www.codelite.org
>>> > wxCrafter, a wxWidgets RAD: http://wxcrafter.codelite.org
>>> >
>>> >
>>> >
>>> > --
>>> > Eran Ifrah
>>> > Author of codelite, a cross platform open source C/C++ IDE:
>>> http://www.codelite.org
>>> > wxCrafter, a wxWidgets RAD: http://wxcrafter.codelite.org
>>> > _______________________________________________
>>> > lldb-dev mailing list
>>> > lldb-dev at cs.uiuc.edu
>>> > http://lists.cs.uiuc.edu/mailman/listinfo/lldb-dev
>>>
>>>
>>
>>
>> --
>> Eran Ifrah
>> Author of codelite, a cross platform open source C/C++ IDE:
>> http://www.codelite.org
>> wxCrafter, a wxWidgets RAD: http://wxcrafter.codelite.org
>>
>>
>> *- Enrico*
>> 📩 egranata@.com ☎️ 27683
>>
>>
>>
>>
>
>
> --
> Eran Ifrah
> Author of codelite, a cross platform open source C/C++ IDE:
> http://www.codelite.org
> wxCrafter, a wxWidgets RAD: http://wxcrafter.codelite.org
>
--
Eran Ifrah
Author of codelite, a cross platform open source C/C++ IDE:
http://www.codelite.org
wxCrafter, a wxWidgets RAD: http://wxcrafter.codelite.org
